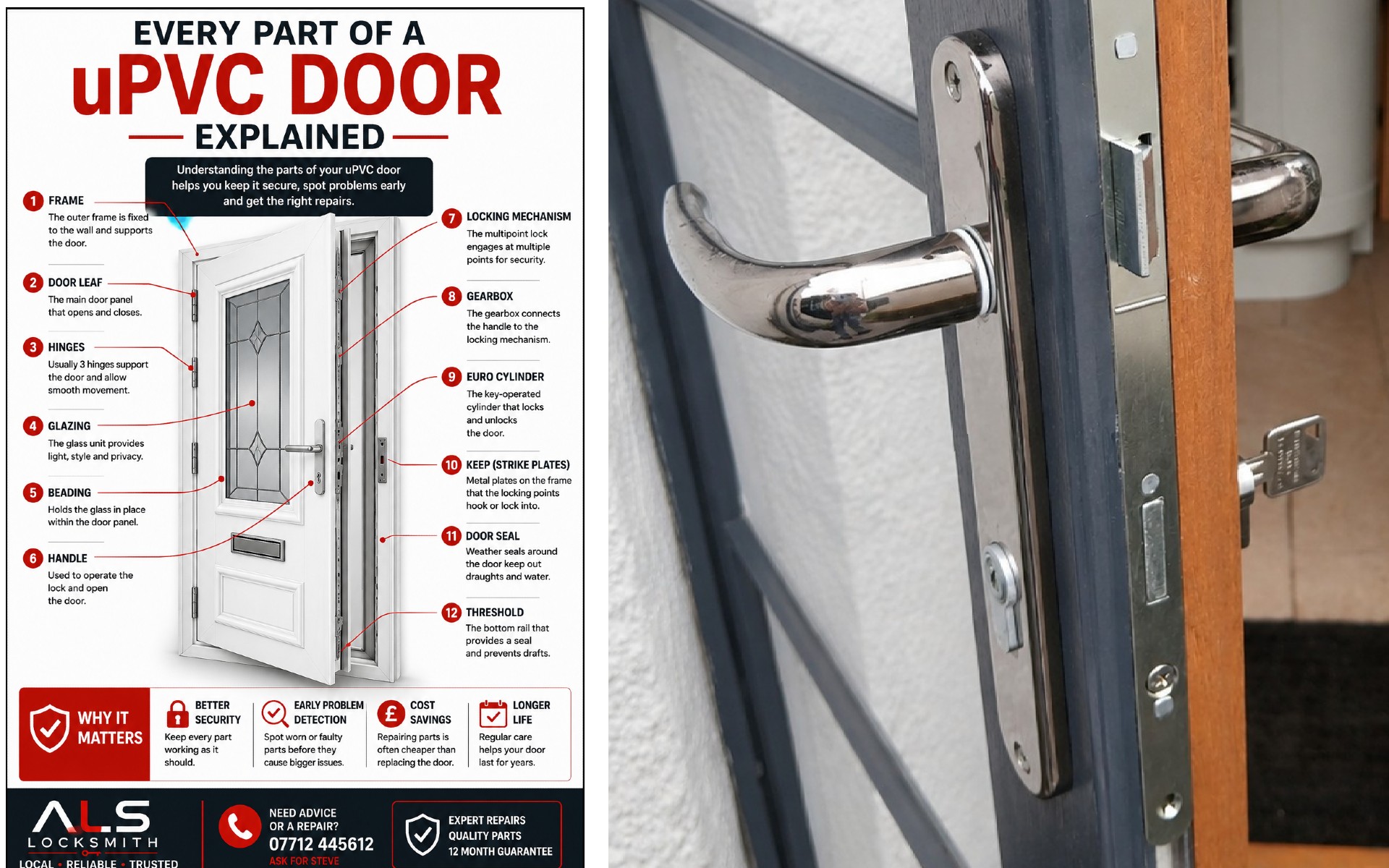

Every Part of a uPVC Door Explained

Most homeowners use their uPVC door every day without giving much thought to what's happening inside it. When a lock becomes stiff, the handle won't lift, or the door won't open, it's easy to assume the whole door has failed.

In reality, a uPVC door is made up of several individual components, each with a specific job. Understanding what these parts do makes it much easier to identify problems and understand what may need repairing.

The Door Frame

The frame supports the entire door and keeps everything aligned.

It also contains the keeps—the metal plates that the locking points engage with when the door is locked.

If the frame or keeps become misaligned, the lock has to work much harder than it should.

Door Hinges

The hinges support the weight of the door and allow it to open and close smoothly.

Over time, they can:

• Wear
• Become loose
• Allow the door to drop
• Move out of adjustment

A dropped door is one of the biggest causes of premature lock failure.

Door Handles

The handles allow you to operate the locking mechanism.

Most modern uPVC doors use sprung handles that return to their horizontal position after use.

Worn handles may:

• Feel loose
• Fail to spring back
• Become stiff
• Develop excessive movement

Sometimes the handles are the problem—but often they're reacting to a fault elsewhere in the locking system.

To learn more about security handles and the different types available, read The Complete Guide to uPVC & Composite Door Handles.

Euro Cylinder

The euro cylinder is the part you insert your key into.

It controls access to the gearbox and allows the door to be locked and unlocked.

Modern cylinders are available in different security levels, including:

• Standard cylinders
• TS007 1 Star cylinders
• TS007 3 Star cylinders

A worn cylinder can make the key difficult to turn or remove.

For a complete explanation of cylinder sizes, security ratings and choosing the correct replacement, see

The Complete Guide to Upgrading Your Door Locks for Better Home Security and The Complete Guide to Euro Cylinder Door Locks.

Gearbox

The gearbox is the heart of the locking system.

It sits behind the handles and controls the movement of the entire multipoint locking mechanism.

A failed gearbox may cause:

• The handle to move but nothing happens
• The key to turn but the door won't open
• The locking points to stop operating
• The door to become jammed

In many cases, the gearbox can be replaced without replacing the complete mechanism.

Multipoint Locking Mechanism

The multipoint locking mechanism is the long metal strip fitted into the edge of the door.

It contains:

• Hooks
• Rollers
• Deadbolts
• Latch
• Connecting rods

When the handle is lifted, these locking points engage with the frame to secure the door at several positions.

To understand how these mechanisms work, read The Complete Guide to Multipoint Locking Systems.

Hooks

Hooks provide additional security by pulling the door tightly into the frame when locked.

If they become worn or damaged, they may fail to engage properly.

Rollers

Rollers help compress the door against the weather seals and improve the overall fit.

Some rollers can also be adjusted slightly during servicing.

Deadbolts

Deadbolts provide a solid locking point that helps resist forced entry.

Depending on the locking mechanism, several deadbolts may be fitted along the edge of the door.

Latch

The latch is the spring-loaded part that keeps the door closed without locking it.

If the latch sticks or fails, the door may not close properly.

Keeps

Keeps are the metal receivers fitted to the door frame.

The hooks, rollers and deadbolts engage with these when the door is locked.

If the keeps become misaligned, the mechanism has to work much harder.

Weather Seals

Rubber seals fitted around the edge of the door help:

• Keep out draughts
• Prevent water ingress
• Improve insulation
• Reduce noise

Worn seals don't usually affect the lock directly but can affect how the door closes.

Letterbox

A loose or poorly fitted letterbox can sometimes interfere with the operation of the lock or allow draughts into the property.

Replacing worn letterboxes is a simple way to improve both security and appearance.

Door Panels and Glass Units

The decorative panel or glazed unit forms the main body of the door.

While they rarely affect the lock, damaged or loose panels can sometimes alter how the door fits within the frame.

Why Door Alignment Matters

Every part of the door relies on correct alignment.

If the door drops slightly:

• The hooks miss the keeps.
• The rollers rub.
• The gearbox works harder.
• The handle becomes stiff.
• The key becomes difficult to turn.

Many lock failures begin with a door that's simply out of alignment.

For advice on improving the overall security of your door, see The Complete Guide to Upgrading Your Door Locks for Better Home Security.

Every Part Works Together

A uPVC door isn't just a lock and a handle—it's a complete mechanical system. When one component wears or moves out of position, it often affects everything else. That's why replacing only the obvious faulty part doesn't always solve the problem. A professional repair involves checking the complete door, identifying the true cause of the fault, and ensuring everything is working together correctly. In most cases, replacing the worn components and correctly realigning the door will restore smooth, reliable operation without the need for a new door.

To learn more about the different types of locks fitted to modern doors and how they work together, read The Complete Guide to Door Locks and A–Z of Door & Lock Security Standards.
