Introduction

If you've removed the handles from an ERA Vectis lock, you'll notice something immediately.

There's no euro cylinder.

No cylinder cam.

No retaining screw holding a euro profile cylinder in place.

Instead, you'll find a traditional 5 lever mortice lock built into a multipoint locking mechanism.

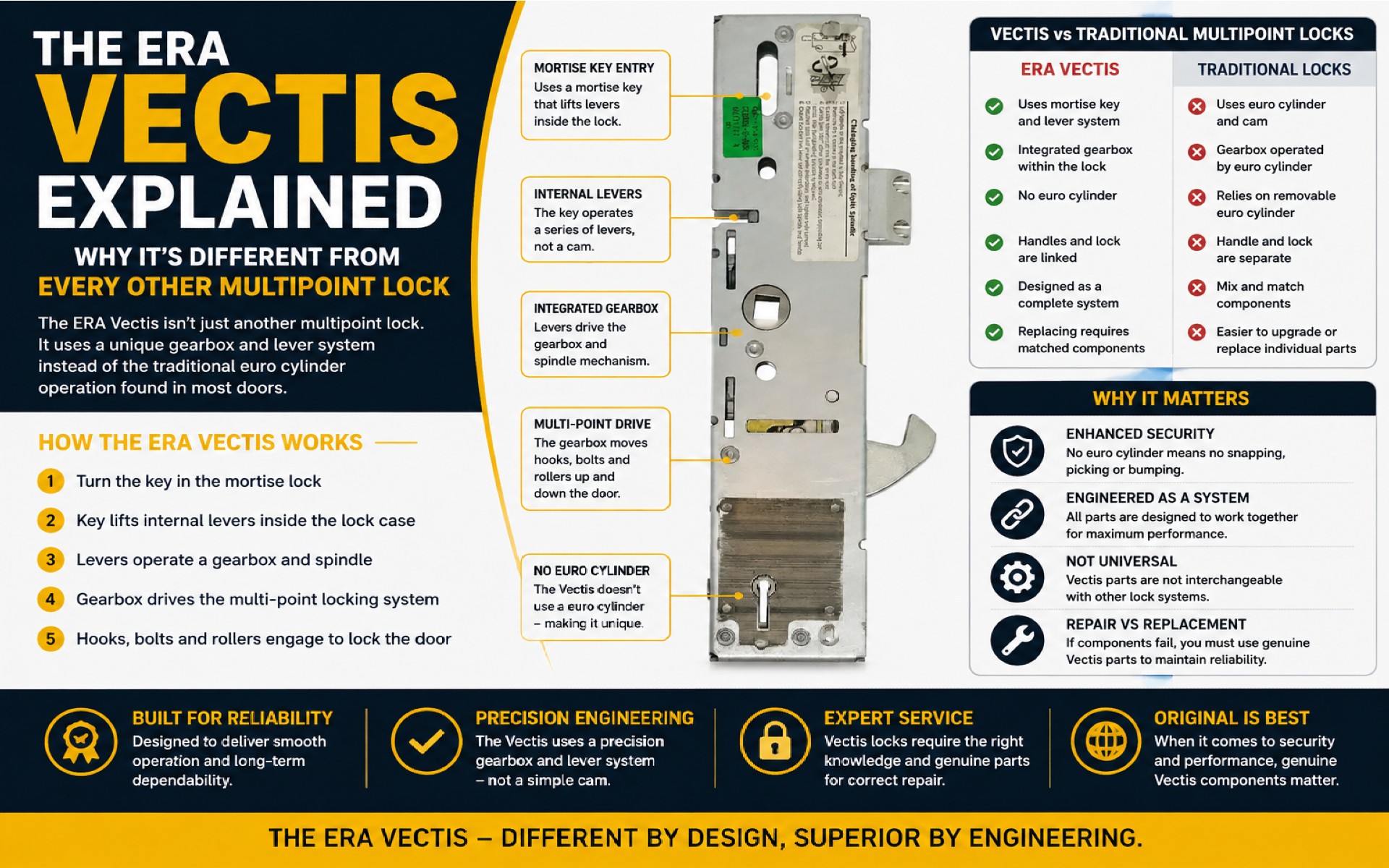

That single design decision makes the ERA Vectis unlike almost every other multipoint locking system ever fitted to domestic entrance doors.

While most modern mechanisms use a euro cylinder to lock and unlock the gearbox, the Vectis keeps the security of a traditional British mortice lock while adding the convenience and security of hooks and multipoint locking.

It is, quite literally, a hybrid between two generations of door lock.

A Different Philosophy

Most multipoint locks were designed around the euro cylinder.

The sequence is simple.

Turn the key.

The cylinder rotates.

The cam moves the gearbox.

The gearbox locks or unlocks the mechanism.

The Vectis doesn't do that.

Instead, the locking mechanism and the mortice lock perform separate jobs.

The handles operate the multipoint mechanism.

The key operates the mortice lock.

Only when both have been used is the door fully locked.

That makes the Vectis mechanically unique.

What Happens When You Lift the Handle?

When the door is closed, only the spring latch is holding it shut.

The hooks are still inside the faceplate and the deadbolt hasn't been thrown.

As you lift the handle:

• The 8 mm spindle rotates.
• The follower inside the gearbox turns.
• The follower drives the internal operating mechanism.
• Steel drive rails travel up and down the faceplate.
• The hooks rotate into their keeps.
• The hooks pull the door tightly against the frame.
• The weather seals are compressed.
• The door is now mechanically secured.

At this stage the door is held by the hooks, but it can still be unlocked simply by pushing the handle back down.

Nothing has been locked yet.

The Mortice Lock Takes Over

Now the key comes into play.

Unlike a euro cylinder, the key isn't turning a cam.

Instead it enters a traditional five lever mortice lock.

Each cut on the key lifts an individual lever.

Each lever contains a gate.

Only when every gate lines up perfectly can the curtain rotate.

This is the same principle used in high-quality British mortice locks for generations.

The Curtain

The curtain is one of the defining features of the Vectis.

Once the levers have been lifted correctly, the curtain is free to rotate.

As it turns, it drives the deadbolt forward into the keep.

At the same time, it prevents the handle mechanism from operating until the key is used again.

Unlike a euro cylinder system, where a small cam transfers the movement directly into the gearbox, the Vectis relies on the interaction between the key, the lever pack, the curtain and the bolt.

It's a more traditional and purely mechanical approach.

Unlocking

To open the door, the sequence is reversed.

The key lifts the levers.

The curtain rotates.

The deadbolt retracts.

The handle is free to move again.

Pressing the handle withdraws the hooks and the latch.

The door opens.

The two systems remain independent but work together to secure the door.

Why the Vectis Is Different

The biggest difference is where the security comes from.

A typical multipoint lock relies on the euro cylinder as its primary locking device.

The Vectis relies on a 5 lever mortice lock.

That means:

• No euro cylinder to replace.
• No cylinder cam.
• No cylinder retaining screw.
• No cylinder sizing issues.
• No cylinder protrusion.
• No cylinder snapping attack.

Instead, the security is provided by the mortice lock and the multipoint hooks working together.

Advantages of the ERA Vectis

Traditional Mortice Security

The lock uses a genuine five lever mortice mechanism rather than a euro cylinder.

No Euro Cylinder

Because there is no cylinder fitted through the door, many of the issues associated with incorrectly sized or protruding cylinders simply don't exist.

Excellent Hook Engagement

The hooks rotate behind the frame keeps, pulling the door tightly against the weather seals and resisting attempts to force the door open.

Positive Locking

The locking action is very mechanical and deliberate. When correctly aligned, there is a solid, positive feel to both the handle and the key.

Repairable Gearboxes

One common misconception is that the ERA Vectis is obsolete.

It isn't.

Replacement gearboxes are still available, and many failed locks can be repaired without replacing the complete mechanism.

The Downsides

No locking system is perfect.

The Vectis has a few weaknesses.

The Gearbox Is Less Robust

Compared with many modern euro-cylinder multipoint gearboxes, the Vectis centre case is generally less tolerant of excessive operating loads.

If the door begins to drop or the hooks start binding against the keeps, the internal components are more likely to wear or fail.

In many cases, the gearbox isn't poorly made—it has simply spent years working harder than it should.

Door Alignment Is Critical

The Vectis is particularly sensitive to poor alignment.

As the hooks begin rubbing against the keeps, the load is transferred directly through the follower and gearbox every time the handle is lifted.

This is one of the most common reasons for gearbox failure.

Correcting the alignment is often just as important as replacing the gearbox itself.

Parts Wear Over Time

Like any mechanical system, years of use eventually take their toll.

Common wear points include:

• The follower.
• Return springs.
• Hook assemblies.
• Latch mechanism.
• Internal gearbox components.

Fortunately, many of these faults can be repaired.

Can It Be Converted to a Modern Multipoint Lock?

Yes.

One advantage of the Vectis is that it can often be converted to a conventional euro-cylinder multipoint locking mechanism.

This typically involves replacing:

• The centre gearbox.
• The handles.
• The locking cylinder arrangement.

The rest of the mechanism may remain compatible, depending on the version fitted and the condition of the lock.

A conversion is sometimes chosen when the homeowner prefers the convenience of a euro cylinder, wants to upgrade to a modern snap-resistant cylinder or when replacement mortice lock parts are no longer the most practical option.

However, if the existing Vectis mechanism is otherwise in good condition, repairing it is often the better and more economical solution.

Common Faults

The most common faults seen on ERA Vectis locks include:

• Gearbox failure.
• Due to poor alignment the bolt detaches frrom the curtain resulting in mechanism failure.
• Keys turn but wont pull back deadbolt.
• Keys feel clumsy to operate.
• Keys if poorly cut wont lift levers and open lock.
• Worn followers.
• Broken return springs.
• Stiff or seized hooks.
• Poor door alignment.
• Doors that need lifting to lock.
• Handles becoming difficult to lift.
• Keys becoming difficult to turn because the mechanism is under load.

In many cases, the lock itself isn't the original cause. The underlying problem is often years of poor alignment placing excessive stress on the gearbox.
